RHC004/9 Fan Assembly Kit – Ski

Kit ventola assemblata originale per ski trainer Sidea Air Ski HC004.

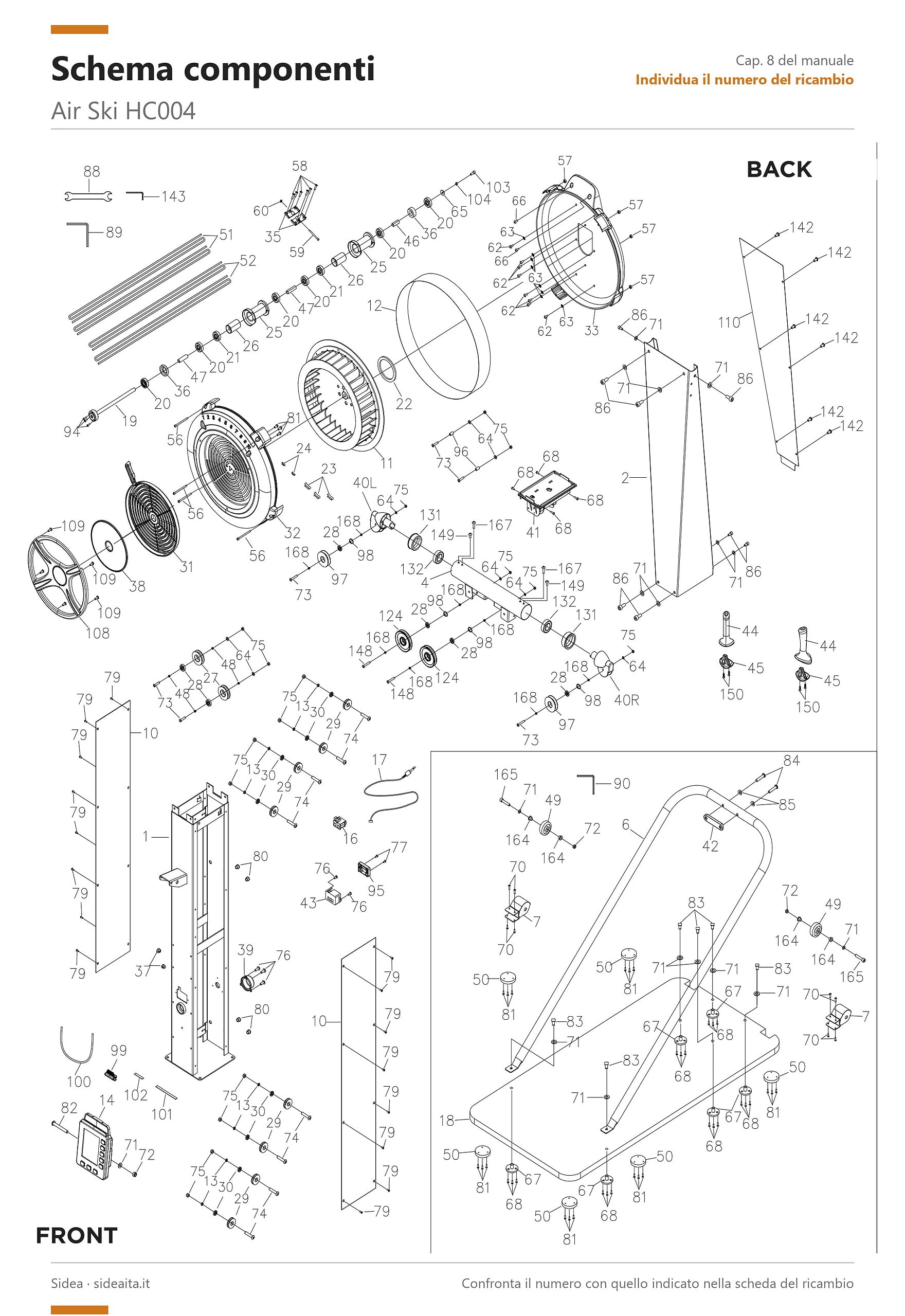

How to spot it: positions 11–12–22–31–32–33–38–56–57–62–63–66–81–108–109 dello schema componenti (cap. 8 del manuale). Confronta i numeri con l’immagine dello schema in galleria prima di ordinare.

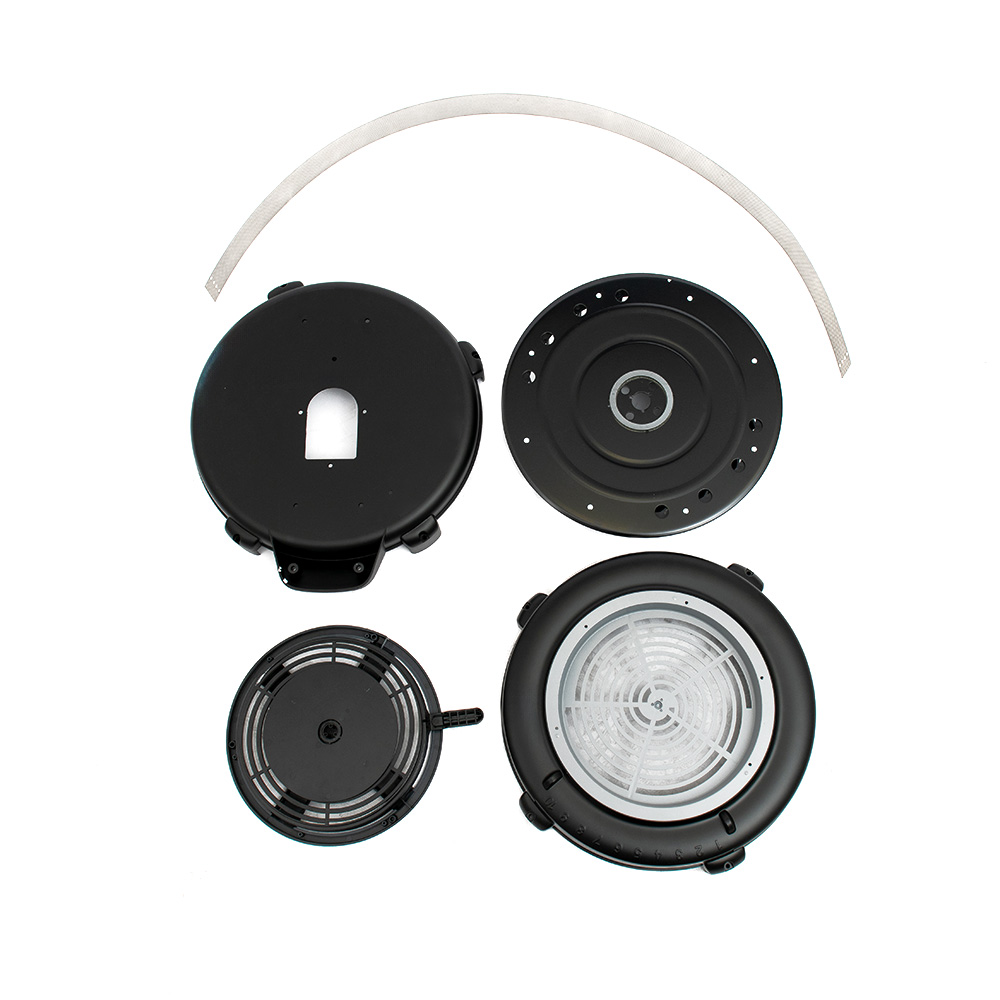

Contenuto del kit:
1 x Fan – girante ventola (rif. 11)
1 x Perforated steel mesh – rete metallica forata (rif. 12)
1 x Magnet – magnete (rif. 22)
1 x Damper – serranda (rif. 31)
1 x Right Fan Cover – carter ventola destro (rif. 32)
1 x Left Fan Cover – carter ventola sinistro (rif. 33)
1 x Damper cap – tappo serranda (rif. 38)
4 x Socket screw M5x92 mm – vite a brugola (rif. 56)
4 x M5 Hex Nut – dado esagonale (rif. 57)
8 x Phillips Screw Round Head M6x10 mm – vite testa tonda (rif. 62)
8 x Lock washer M6 inner tooth – rondella dentata (rif. 63)
1 x Bolt Phillips M6x16 mm – vite (rif. 66)
3 x Self-tapping screw ST4.2×16 mm – vite autofilettante (rif. 81)
1 x Decorative cover – cover decorativa (rif. 108)
3 x Phillips Pan Head Self Tapping Screw ST4.2×10 mm – vite autofilettante (rif. 109)

Quantity installed on the machine: 1 kit.

Sold individually. If you are unsure about compatibility, please contact us, quoting the machine’s serial number.
