9038/05-9038/50 Fractional Plate

FRACTIONAL PLATES (MY2021) - IWF Standard Fractional Discs

The series of Fractional Plates (also called micro-loads) consists of small, rubber-coated metal discs for fractionating the weight to be lifted with an Olympic barbell, available in sizes 0.125 - 0.250 - 0.5 - 1 - 1.5 - 2 - 2.5 - 5 kg, coloured according to IWF regulations.

The hole, 50 mm in diameter, is not fitted with a ring but is characterised by the presence of a membrane capable of exerting a frictional grip on the rocker arm. Thanks to this solution, the fractional discs can be positioned externally to the disc retainer collars so that they can be engaged and disengaged more quickly.

In fact, the rubber membrane allows loading but, by adhering to the disc holder, does not allow the disc to move or slip out easily due to gravity (function FRICTION GRIP).

ATTENTION: the 0.125 kg plate (code 9038/125) and the 0.250 kg plate (code 9038/250) do not have the FRICTION GRIP.

Available weights:

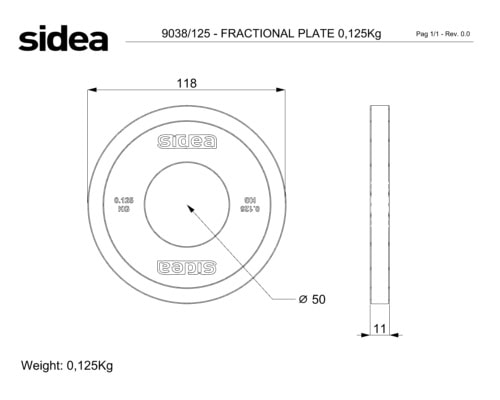

• code 9038/125 single plate 0.125 kg

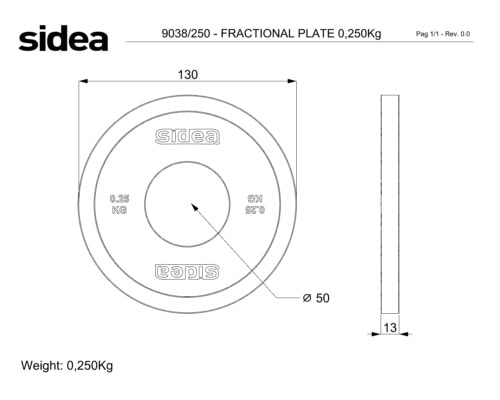

• code 9038/250 single plate 0.250 kg
• code 9038/05 single plate 0.5 kg - colour white, ext Ø 135 mm, thickness 12 mm
• code 9038/10 single plate 1.0 kg - colour green, ext Ø 160 mm, thickness 13 mm
• code 9038/15 single plate 1.5 kg - colour yellow, ext Ø 175 mm, thickness 18 mm
• code 9038/20 single plate 2.0 kg - colour blue, ext Ø 190 mm, thickness 19 mm
• code 9038/25 single plate 2.5 kg - colour red, ext Ø 210 mm, thickness 19 mm
• code 9038/50 single plate 5.0 kg - colour white, ext Ø 230 mm, thickness 26 mm

Other fractional discs:

cod. 9030-9036 PU plates with sockets (from 1.25 kg to 25 kg)
cod. 9030/3-9035/3 Rubberized plates with sockets (from 1.25 kg to 20 kg)
cod. 9040/25 Technique Plates (2.5 kg, ext Ø 45 cm)
cod. 9040/25h-9040/50h Technique Hollow Plates (2.5 kg and 5 kg, ext Ø 45 cm)

Bumper Plates:

cod. 9040/1-9044/1 Black Rubber Bumper Plates (5 to 20 kg)
cod. 9040/2-9046/2 Pro-Training Bumper Plates (5 to 25 kg)
cod. 9040/3-9046/3 PU Bumper Plates (5 to 25 kg)
cod. 9040/4-9046/4 Black PU Bumper Plates (5 to 25 kg)
